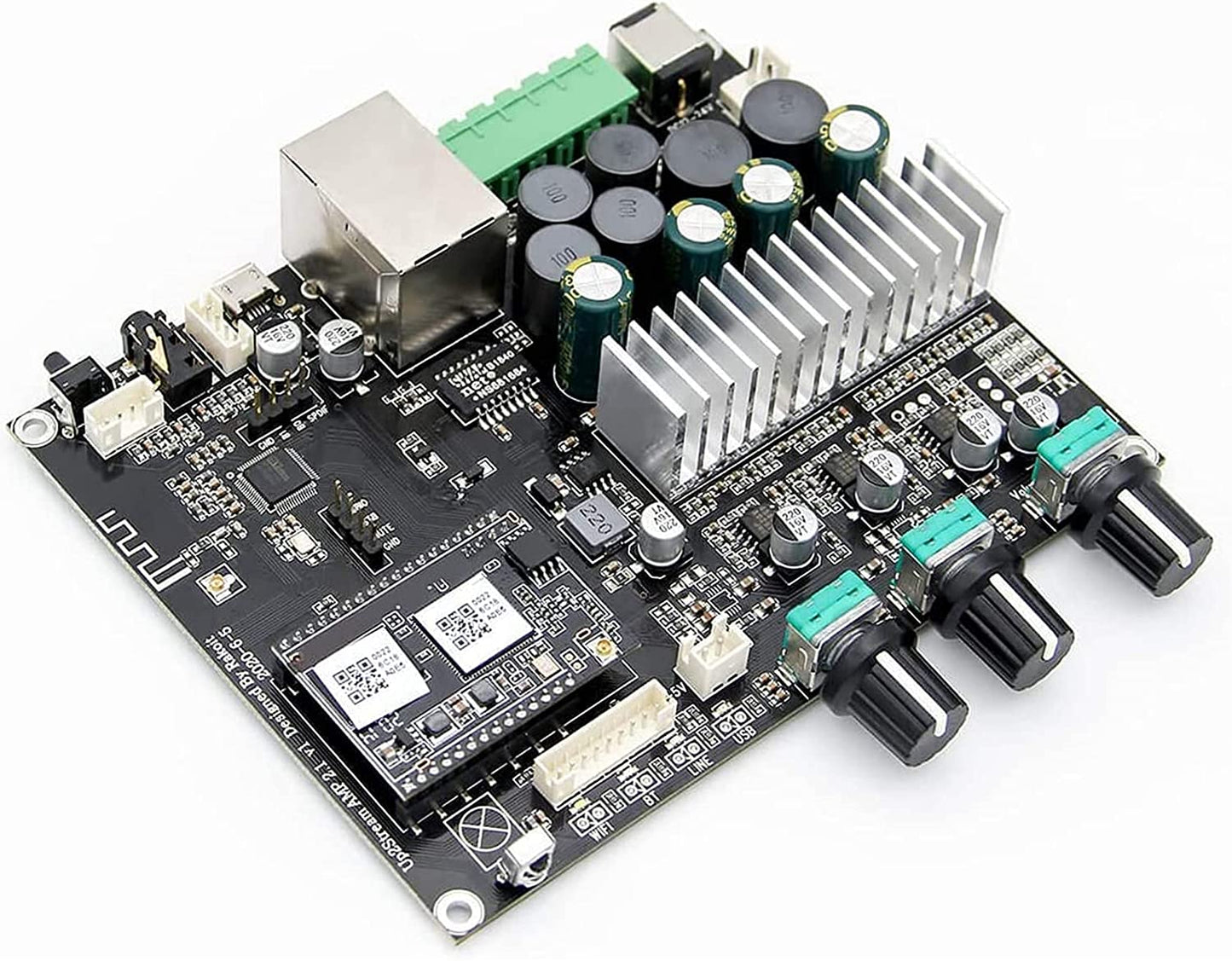

M12 Amplifier Board WiFi Bluetooth Home Audio for DIY Speaker-Up2stream Amp 2.1 Pro V5

M12 Amplifier Board WiFi Bluetooth Home Audio for DIY Speaker-Up2stream Amp 2.1 Pro V5

€67,50
€67,50
Sale Sold out
Tax included.
  • 【WIRELESS STEREO&Multiroom Control】:Add wireless/network streaming capability to your current speakers, home amplifiers ,home stereo or receiver.Set multiple Arylic devices connected on the same network, then you can start to stream your audio by a smart phone or a tablet. Through our 4stream app you can control to play the different audio or same sound simultaneously on each devices.
  • 【POWERFUL SUBWOOFER】: 50W X2 stereo pair+ 100W subwoofer amplifier board. Supports virtual bass (activated via remote) and high-res audio. Can be used to push a 10 inches subwoofer for home theater playback.
  • 【STABLE STREAMING AND HIGH SOUND QUALITY】: Supports playback of lossless music files-MP3, APE, FLAC, WAV with Hi-Res audio.When streaming wirelessly, Bluetooth can reach up to 30 meters. With stream music over the network, Wifi can reach anywhere the signal covers. And free iOS and Android app: 4stream
  • 【Multiple Music Sources & Protocols】: Supports Spotify, Tune in, iHeartRadio, XIMALAYA, QQ Music, TIDAL, Napaster, Qobuz, QQFM, Deezer etc. And airplay1, Qplay, DLNA, UPnP protocols. Also Other audio sources for local music, USB flash drive, NAS and line inputs.
  • 【Easily Control Via App & Web】：Choose your music source and control playback, set EQ, control multiroom/independent playback, select preset content, control alarm clock, WiFi settings, update firmware and more... All the useful features you need in our free 4STREAM App for iOS & Android.What's more, you can Control each unit directly via web browser. Just enter the device IP in the browser.

Pro V5 SPECIFICATIONS

Wireless network IEEE802.11 b/g/n 2.4G
Ethernet Single 10/100M RJ45
Bluetooth 5.0, SBC/AAC
USB Host Play USB music
Power Input DC 12V - 24V

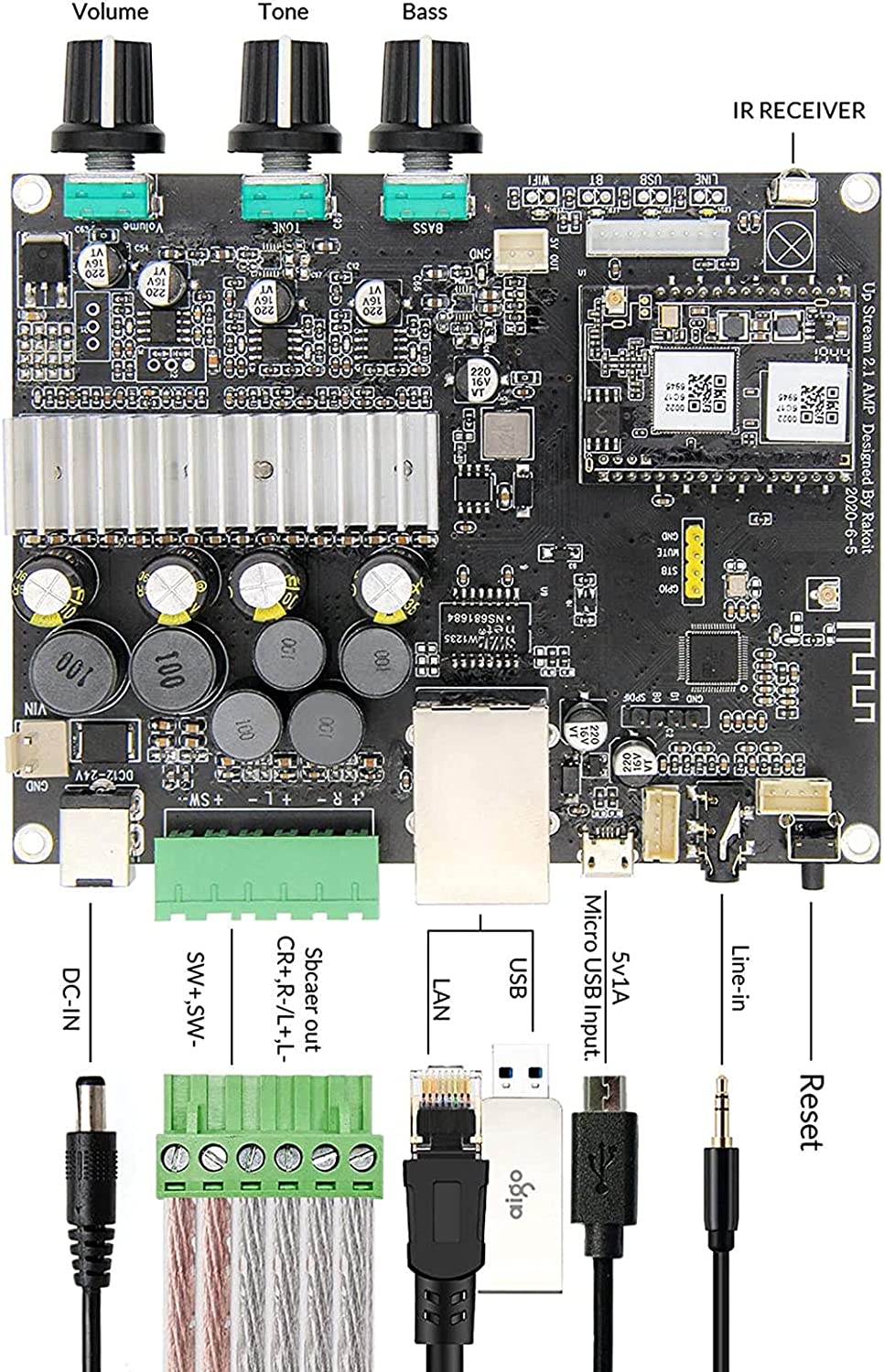

Audio Input Analog 3.5mm/4pin connector/Micro USB
Audio output Analog Speaker out with subwoofer out (PIN SPACE-5.0mm)
Frequency response 20Hz to 20kHz
Volume Control Volume Knob, Treble Knob, Bass Knob
Speaker Power 2x50W@4Ω + 100W@2Ω BTL load at 24V; 2x30W@8Ω + 75W@4Ω BTL load at 24V; 2x22W@8Ω + 48W@4Ω BTL load at 19V; 2x15W@8Ω + 30W@4Ω m BLT load at 15V
THD <0.03%, @1kHz/1W/24V/4Ω
Speaker Impedance 4-8ohms
music output 16bit/44.1khz CD quality
Music Format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Decoding Up to 24bit/192kHz

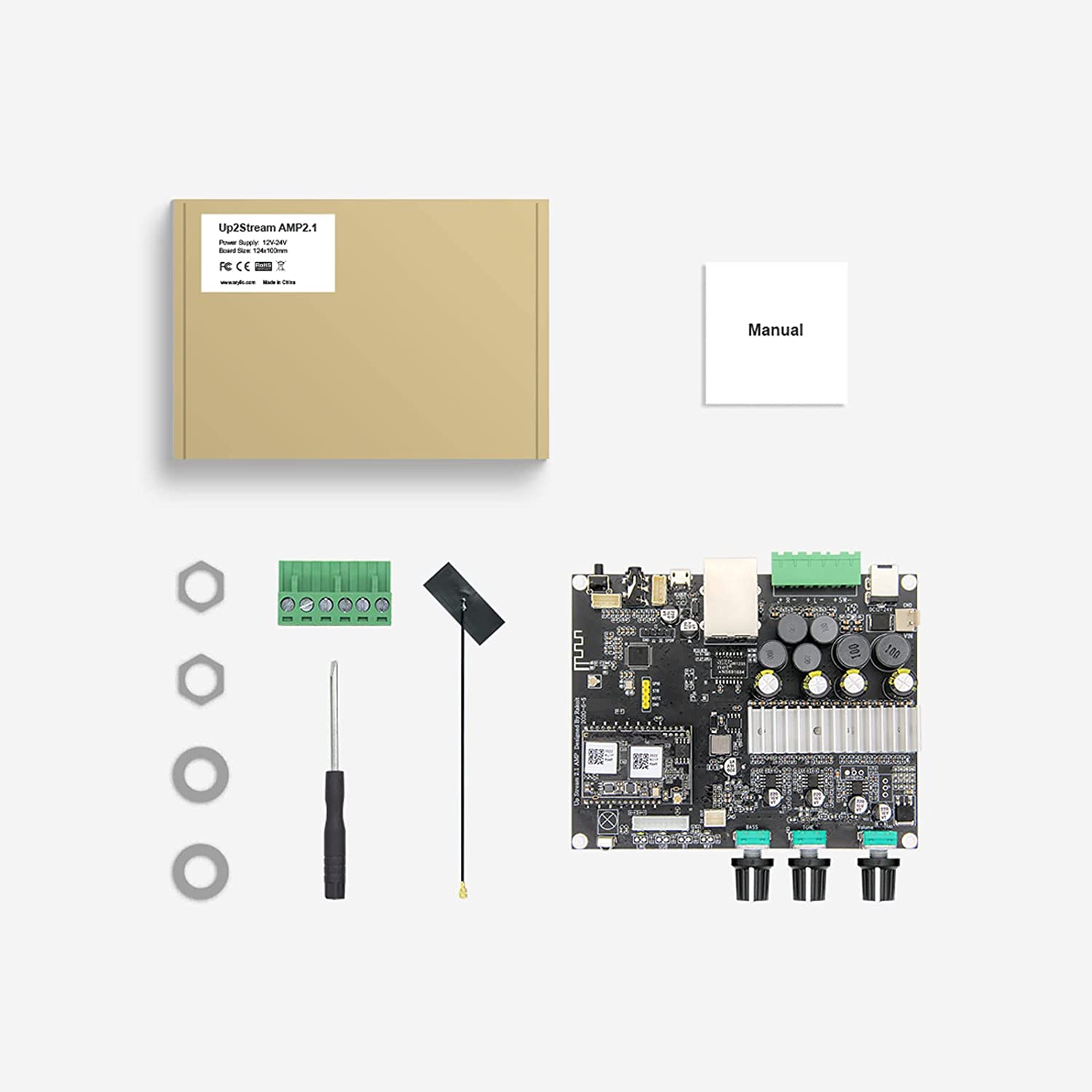

Product Included Main unit*1,6pin analog connector*1,screw Driver*1,WiFi Antenna*1,3 *Knob Cover *1,User Nanual*1
